ENGINEERING EXPERTISE

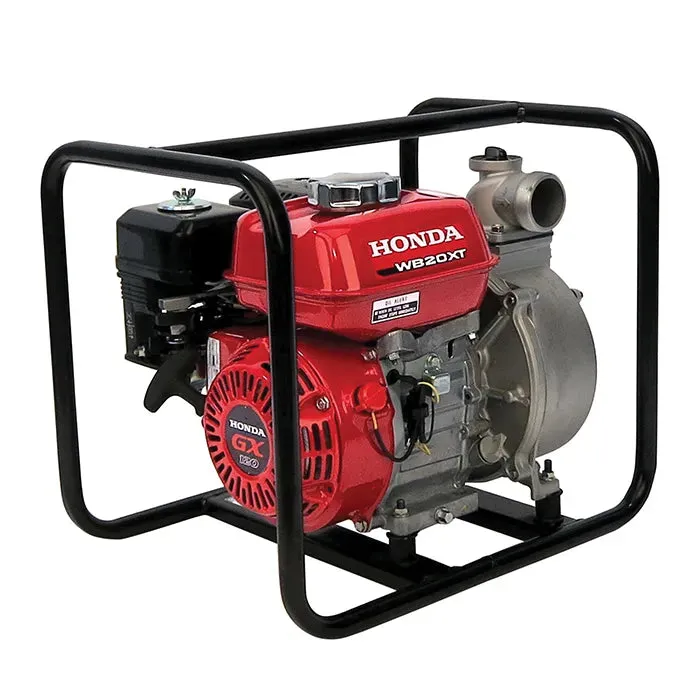

Drawing on decades of engineering advancements, the Honda GX120 engine that powers the WB20 ensures easy starting, easy usage, outstanding fuel economy, low emissions and long-lasting durability.
With oil alert and rubber mounts, the full frame type provides stability and delivers smooth running with less vibration. The result is a reliable, long-lasting pump that will perform time after time.
PERFORMANCE
With capacity to deliver 600 litres per minute, this 2" Volume Water Pump has a maximum suction head of 8m and a maximum total head of 32m. Like so many other Honda products, the WB20 starts first time, every time with Honda’s famous one pull easy start system.
It runs on unleaded fuel, so you’ll never have to mix oil and petrol again. The result? An environmentally-friendly pump with low emissions & fuel consumption.
- Powerful output - Honda GX120 engine
- Cast iron volute - Reduces case wear
- Oil alert system - Shuts off engine when low oil is detected
- Heavy duty full frame - Added Protection
| Product Code | WB20XT4DRXU |
| Pump Type | Centrifugal volume pump |
| Engine | GX120 |
| Displacement (cc) | 118 |
| Fuel Type | Unleaded |
| Oil Alert | Yes |
| Total Head (m) | 32 |
| Suction Head (m) | 8 |
| Max Discharge Capacity | 600 litres/min |
| Self Priming Time (at 5m) | 110 sec |
| Fuel Consumption | 1 l/hr |
| Mounting | Rubber |
| Hose Band/Stainer | Yes |
| Fuel Tank Capacity | 2.5l |
| Discharge Port Diameter (mm) | 50 |
| Suction Port Diameter (mm) | 50 |
| Length (mm) | 455 |
| Width (mm) | 365 |
| Height (mm) | 420 |
| Dry Weight (kg) | 21 |
